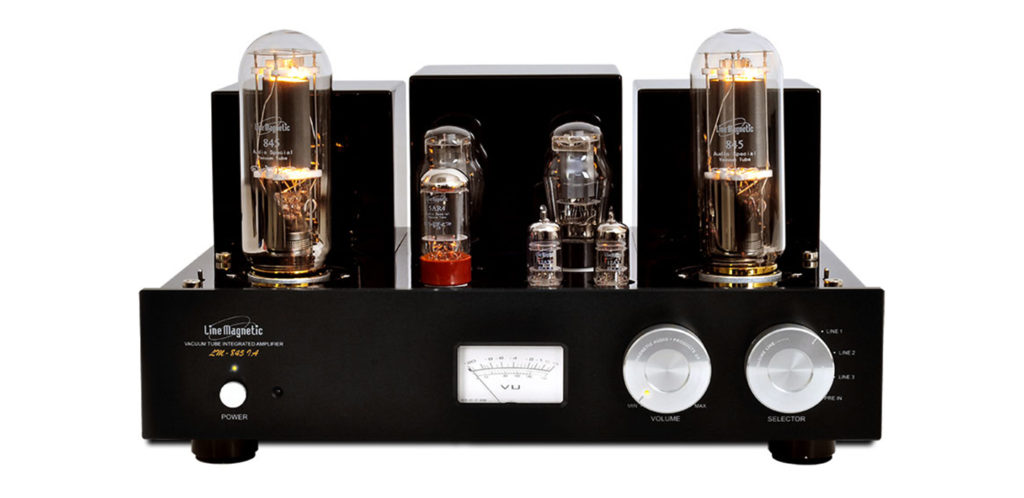

Line Magnetic 845ia

Line Magnetic 845ia

TUBES
Input stage: 2x 12AX7
Rectifier: 1x 5AR4
Drivers: 2x 6P3P
Power stage: 2x 845 « single-ended » design and pure class A

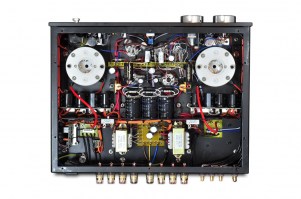

Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 3 line inputs Load impedance: 4/8/16?
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.

Metal and removable tube guard cage Infrared
Remote control

Tubes Basics Common Remplacements
12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12AU7 ECC82, 12AU7EH, 5814, 6189, CV4003
EL34 6CA7

Specifications
Class A amplifier – 2x22W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency response (-1.5dB): 10 – 50.000 Hz
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100k?
Load impedance for HP to connect: 4/8/16?

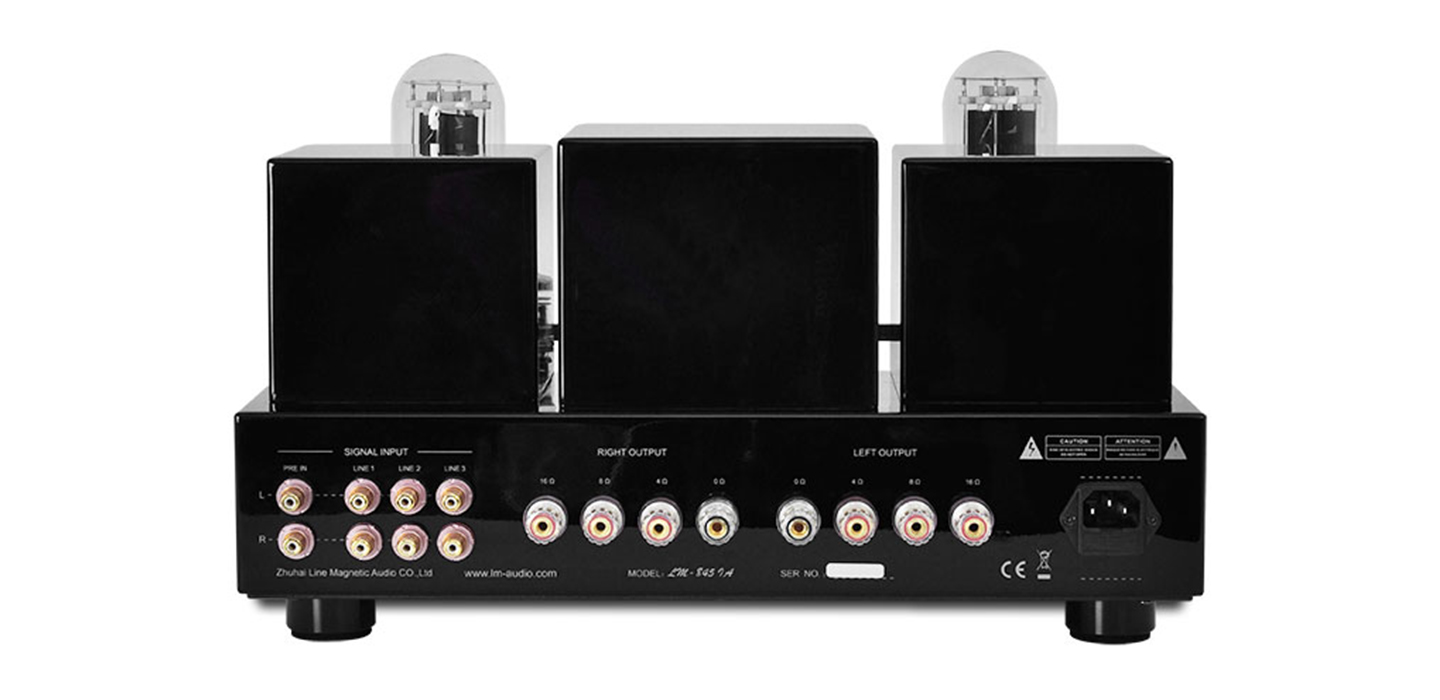

Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs

Included Accessories
2x Fuses
1x Remote control
2x Battery AAA
1x Detachable power cord
1x Manual
1x Warranty Card

Generality
Dimensions (L x H x P): 365 x 250 x 340 mm
Weight: 35 Kg
Finish: Black

Category: .
